When Arc Flash Risk Assessment Uncovers More Than Labels
If you are preparing for an OSHA inspection or an internal audit, your immediate concern is often compliance and worker safety around energized equipment. Arc flash labels are part of that picture, but on their own, they do not fully protect your workers or satisfy the intent of NFPA 70E and OSHA 29 CFR 1910. A thorough arc flash risk assessment often uncovers deeper maintenance and documentation issues that can undermine both safety and compliance.
An arc flash risk assessment is often booked to get labels in place before an audit, a shutdown, or a busy season. That goal makes sense, but labels are only part of the story. Once data collection begins in the field, maintenance and documentation gaps often appear that raise the real risk for your workers and your equipment.
Why NFPA 70E Ties Arc Flash Risk to Maintenance
NFPA 70E
defines an Arc Flash Risk Assessment as a process, not a one-time number. This process is there to help you:
- Identify electrical hazards
- Estimate how likely an event is and how severe it could be
- Decide what protective measures are needed
NFPA 70E connects that process directly to the condition of your equipment. It expects Overcurrent Protective Devices, breakers, fuses, and relays that limit fault current by opening a circuit during an overload or short circuit to be properly installed and maintained. If that is not true, NFPA 70E warns that the results of an Incident Energy analysis (the amount of thermal energy a worker could be exposed to during an arc flash) might not be reliable.
IEEE 1584
gives you the calculation methods to determine incident energy and arc flash boundaries. Those methods assume that breakers and fuses trip in line with their published Time-Current Curves (charts that show how fast a device should operate at a given current level) and that relays operate as set. That only happens when you have real testing and maintenance, such as NETA ATS (acceptance testing for new equipment) and NETA MTS (maintenance testing for equipment in service).
OSHA 29 CFR 1910.303(b)
and 1910.305 require electrical equipment to be installed and maintained in a safe condition. OSHA often points to NFPA 70E as a recognized way to meet that duty. If you only focus on updating labels while ignoring maintenance history, test records, and device settings, you may still miss the mark for an effective electrical safety program.
Common Maintenance Gaps Revealed by Arc Flash Studies
When an arc flash risk assessment is performed, the first clues usually come from paperwork. Common gaps include:
- One-Line Diagrams (single-page drawings that show how your electrical system is connected) that do not match what is in the field
- Unknown, undocumented, or changed protective device settings
- Missing or incomplete Short-Circuit and Coordination Studies (engineering studies that confirm equipment can withstand faults and that protective devices operate in the right order)

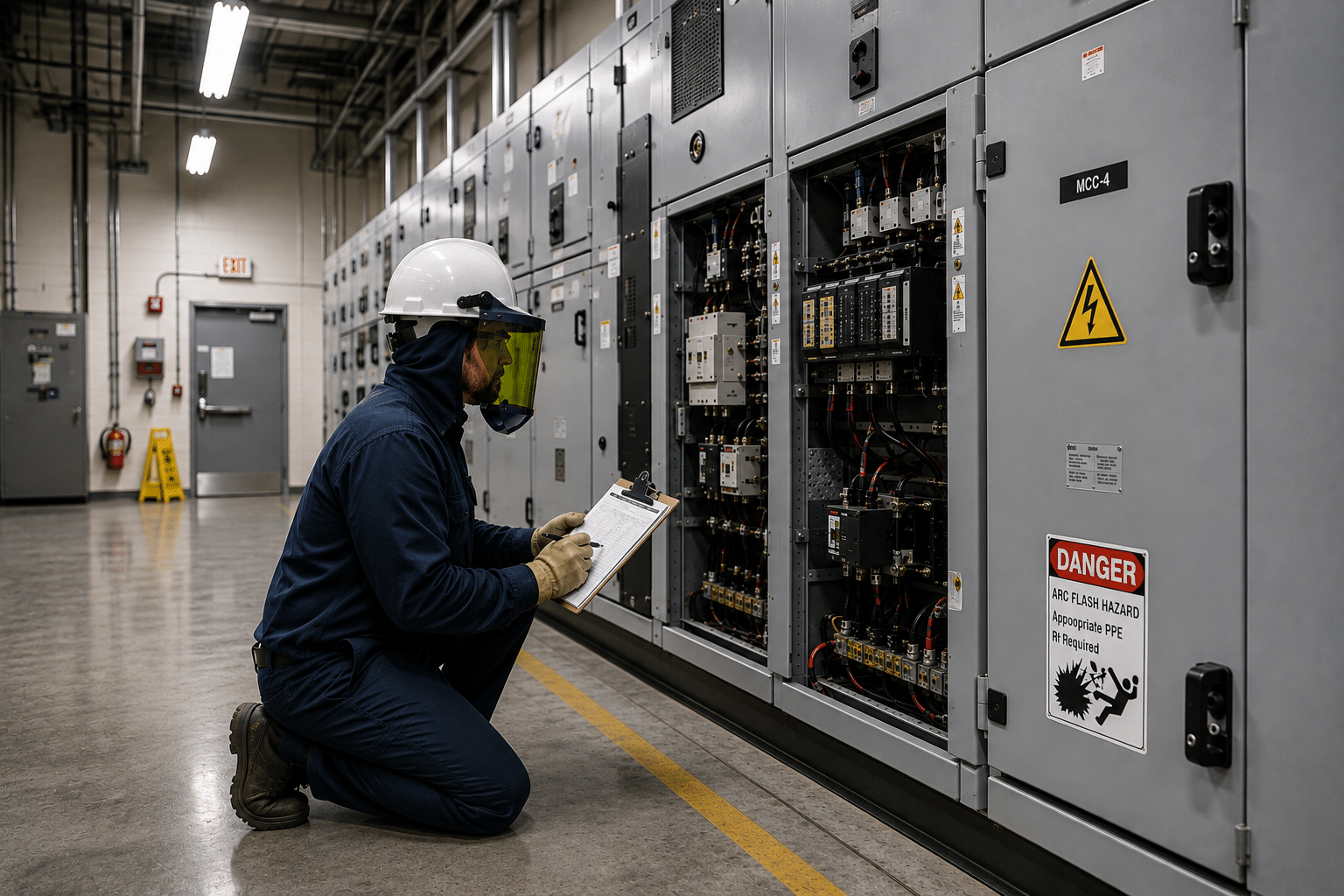

Out in the switchgear room or on the production floor, equipment issues often appear during data collection, such as:
- Breakers and switches with no recent NETA ATS/MTS testing history
- Signs of overheating, dirt buildup, or mechanical wear in older gear
- Protective relays that were never fully commissioned or have not been function-tested in years
Summer can make all this worse. Higher ambient temperatures, heavy HVAC loads, and longer run times push neglected equipment harder. A breaker that is already sticky or dirty is more likely to trip late, fail to clear a fault, or nuisance trip at the worst time.
There is a big difference between what you might call paper compliance and true readiness:
- Paper Compliance: labels in place, but no current test data, unknown settings, and outdated drawings
- True Readiness: up-to-date one-lines, documented settings, recent NETA-compliant test results, and gear that matches the study assumptions
Finding these gaps during an arc flash risk assessment gives you a chance to fix them during planned work, instead of during a blackout or equipment failure.
Turning Findings Into a Targeted Maintenance Action Plan
Once the assessment is complete, your real safety and compliance gains come from what you do with the findings. The goal is not just a long list of issues. The goal is a clear, prioritized maintenance plan that fits your operations.
A helpful first step is to sort findings into buckets:
- Critical Safety and Compliance Items, like mis-coordinated breakers, missing covers, or damaged gear
- Required Testing and Inspection Items, based on NETA ATS/MTS and manufacturer guidance
- Documentation and Labeling Corrections, such as one-line updates and device identification
From there, you can prioritize work based on:
- Incident energy levels and approach boundaries for each location
- How often workers interact with the equipment
- How critical the equipment is to production, data, or mission
- Available outage windows, such as holiday periods or cooler shoulder seasons
NFPA 70E expects you to consider Condition of Maintenance, not just the age of equipment. That means you can use real test data and failure history to adjust maintenance intervals, rather than relying only on generic time frames. When safety, maintenance, and engineering teams work together, you can also update training, written procedures, and energized work permits so they match current system conditions.
Building a Sustainable Electrical Safety and Maintenance Program
To keep risk under control year-round, it helps to shift from one-time projects to a sustainable electrical safety program. Arc flash risk assessments, NFPA 70E training, and NETA-compliant testing all become ongoing parts of the same effort.
Core elements of that program usually include:
- Current one-line diagrams with matching short-circuit and coordination studies
- A documented testing schedule aligned with NETA ATS/MTS and how critical each piece of equipment is
- Regular review of arc flash labels when system changes occur or at set intervals
- Training for qualified workers on NFPA 70E, approach boundaries, PPE, and task-based risk assessments
Routine condition-based maintenance and testing help confirm that the assumptions used in your IEEE 1584 calculations still hold up. That reduces surprises when you update the study, and it keeps labels realistic.
For facilities in hot or humid areas, planning matters even more. Aligning breaker maintenance, cleaning, and relay testing with cooler periods or planned shutdowns helps protect equipment from seasonal stress and lowers the chance of failures when loads surge.
Working with an experienced electrical safety and systems engineering firm with national experience can help you apply the same standards at every site, even when climates and operations differ.
Key Takeaways
- Arc flash risk assessments often reveal hidden gaps in maintenance and documentation that directly affect both safety and compliance.
- NFPA 70E, OSHA 29 CFR 1910, IEEE 1584, and NETA standards all assume that electrical equipment is properly installed and maintained. Poor maintenance can make study results less reliable.
- Turning assessment findings into a prioritized maintenance action plan lets you address the highest risks first and make smart use of planned outages.
- A sustainable electrical safety program ties together studies, NFPA 70E training, and NETA-compliant testing so what is in the field matches what is on paper.
- Partnering with an experienced electrical safety and systems engineering firm helps standardize practices and support safer, more reliable operations across multiple facilities.
Frequently Asked Questions
How Often Should I Update My Arc Flash Risk Assessment?
NFPA 70E calls for an arc flash risk assessment review when major system changes occur and at intervals not to exceed five years. Facilities with frequent modifications, expansions, or equipment moves may need updates more often so that labels and boundaries stay accurate.
What If My Equipment Isn’t Maintained Before an Arc Flash Study?
If equipment is not maintained or its condition is unknown, incident energy calculations may not reflect how the system will actually respond to a fault. This often leads to conservative results, higher PPE levels, and a greater chance of unexpected behavior during an event.
Which Standards Should Guide My Electrical Maintenance Program?
A solid program usually leans on NETA ATS and MTS for acceptance and maintenance testing, NFPA 70E for safety-related work practices and condition of maintenance, and OSHA 29 CFR 1910 for regulatory requirements. Working within this group of standards keeps your approach consistent and defensible.
Can I Rely on Labels Alone to Keep Workers Safe?
No. Labels are important, but they are only one part of an electrical safety program. Workers also need current NFPA 70E training, clear procedures, and properly maintained and tested equipment to reduce both the likelihood and severity of an arc flash.
How Do I Prioritize Corrective Actions After a Study?
Start with items that affect life safety and regulatory compliance, such as mis-coordinated protection, very high incident energy at equipment that workers access often, and damaged or missing protective covers. Then plan follow-up work on documentation, coordination refinements, and long-term reliability upgrades.
