| Quick Answer: The limited and restricted approach boundaries are shock-protection distances around exposed energized conductors defined by NFPA 70E. The limited approach boundary is where a shock hazard begins — unqualified people must stay outside it unless escorted. The restricted approach boundary is closer in, where the risk of shock is high; only qualified workers using proper PPE and planning may cross it. They address shock, not arc flash, and are separate from the arc flash boundary. |
Arc flash gets most of the attention, but shock still injures and kills electrical workers every year. NFPA 70E uses a set of approach boundaries to manage that shock hazard — invisible lines around exposed energized parts that tell each person how close they may safely come. Knowing the difference between the limited and restricted approach boundaries is basic literacy for anyone working near energized equipment.
Why Shock Approach Boundaries Exist
Shock happens when a person contacts an energized conductor or comes close enough that voltage can bridge the gap. The approach boundaries translate that physics into practical distances based on system voltage. Rather than asking every worker to judge “how close is too close,” NFPA 70E defines specific boundaries that scale with voltage, so the rules are consistent and teachable. The higher the voltage, the farther out the boundaries sit.
The Limited Approach Boundary
The limited approach boundary is the outer line — the distance from an exposed energized conductor at which a shock hazard begins to exist. Outside it, an unqualified person is at low risk from shock. Crossing it is where control begins: an unqualified person may only cross the limited approach boundary when escorted and continuously supervised by a qualified person who has explained the hazards. This boundary is essentially the line that keeps untrained people at a safe distance from live parts.
The Restricted Approach Boundary
The restricted approach boundary sits closer to the energized part, inside the limited approach boundary. It marks the zone where the risk of shock from inadvertent movement is high. Only qualified workers may cross it, and only when they have a plan, are using appropriate shock PPE such as insulated gloves and tools, and have documented the work. Conductive objects must not be brought across this boundary unless they are insulated. In short, the restricted approach boundary is where the most careful controls apply.
How the Two Boundaries Work Together

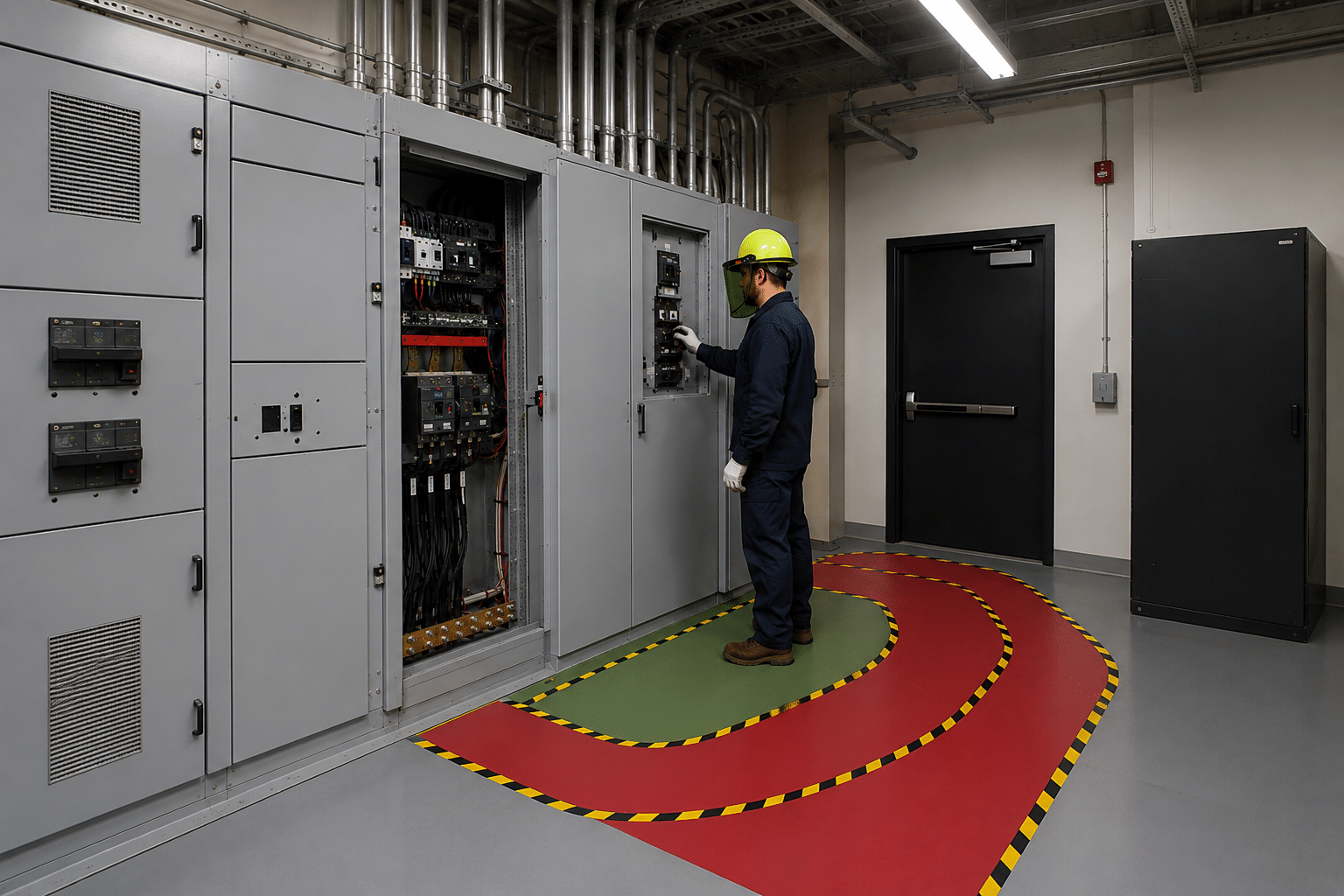

Think of the boundaries as concentric zones. Beyond the limited approach boundary, ordinary work proceeds normally. Between the limited and restricted boundaries, qualified workers operate with shock-hazard awareness, and unqualified persons may enter only under escort. Inside the restricted approach boundary, only qualified workers with proper PPE and planning may go, because a small unplanned movement could result in contact. Each layer narrows who may be present and raises the level of protection required. Teaching workers to picture these zones is a core part of Bowtie’s NFPA 70E electrical safety training.
Approach Boundaries Are Not the Arc Flash Boundary
This is the most important distinction to get right. The limited and restricted approach boundaries address the shock hazard — contacting or approaching energized conductors. The arc flash boundary addresses the thermal hazard of an arc. They are calculated differently and are usually different distances; the arc flash boundary can fall inside or outside the shock boundaries depending on the equipment. A worker must respect all of them at once. Confusing the two is a frequent and dangerous error, and the relationship between them is established through an incident energy study that produces the arc flash data while the shock boundaries come from the system voltage.
Qualified vs Unqualified Persons
The boundaries only make sense alongside the definitions of qualified and unqualified persons. A qualified person has the training and knowledge to recognize and avoid the hazards of the specific equipment and task. An unqualified person does not. The boundaries assign different permissions to each: unqualified persons are generally kept outside the limited approach boundary unless escorted, while only qualified persons may cross the restricted approach boundary. This is why “qualified” status is not a job title but a task-specific judgment backed by training.
Putting the Boundaries to Work on the Floor
In practice, the boundaries drive everyday decisions: where to place barriers and signs, how far back to keep helpers and observers, when an escort is required, and what PPE a worker dons before approaching. A good job briefing — the kind of safe work practice OSHA expects — states the boundaries for the task, identifies who is qualified, and confirms the shock PPE on hand. Barriers and signage make the limited approach boundary visible so unqualified people do not wander into it. These habits turn an abstract distance into a concrete, repeatable safe-work routine.
Keeping Boundary Decisions Defensible
Because the boundaries depend on system voltage and on whether parts are exposed, they should be part of the documented shock risk assessment for a task — not improvised at the panel. Recording the boundaries, the qualified personnel, and the PPE used demonstrates that the work was planned and controlled, which matters during an audit or after an incident. Pairing that documentation with regular training keeps the knowledge fresh, because boundaries that workers cannot recall are boundaries that do not protect anyone.
One practical nuance trips up many teams: the approach boundaries apply only where energized conductors are exposed or likely to become exposed during the task. Closing a panel cover changes the exposure, and therefore the controls. Workers should be taught to re-evaluate the boundaries each time the equipment state changes — when a cover comes off, when a part is racked out, or when a test lead is connected. Treating the boundaries as fixed regardless of equipment condition leads either to needless restrictions or, far worse, to a worker who assumes the panel is safe because it was a moment ago. The boundary follows the hazard, and the hazard changes as the work proceeds.
Frequently Asked Questions
What is the limited approach boundary?
The distance from an exposed energized conductor where a shock hazard begins; unqualified persons stay outside it unless escorted by a qualified person.
What is the restricted approach boundary?
A closer boundary where shock risk is high; only qualified workers with proper PPE and planning may cross it.
Do the boundaries change with voltage?
Yes. Higher system voltage pushes the boundaries farther from the energized part.
Are these the same as the arc flash boundary?
No. The approach boundaries address shock; the arc flash boundary addresses thermal arc energy. All must be respected simultaneously.
Can an unqualified person ever cross the limited approach boundary?
Only when escorted and continuously supervised by a qualified person who has explained the hazards.
Key Takeaways
- The limited approach boundary marks where a shock hazard begins; the restricted is closer, where risk is high.
- Only qualified workers with proper PPE and planning may cross the restricted approach boundary.
- The boundaries scale with system voltage and address shock, not arc flash.
- They are separate from the arc flash boundary, and workers must respect all of them at once.
