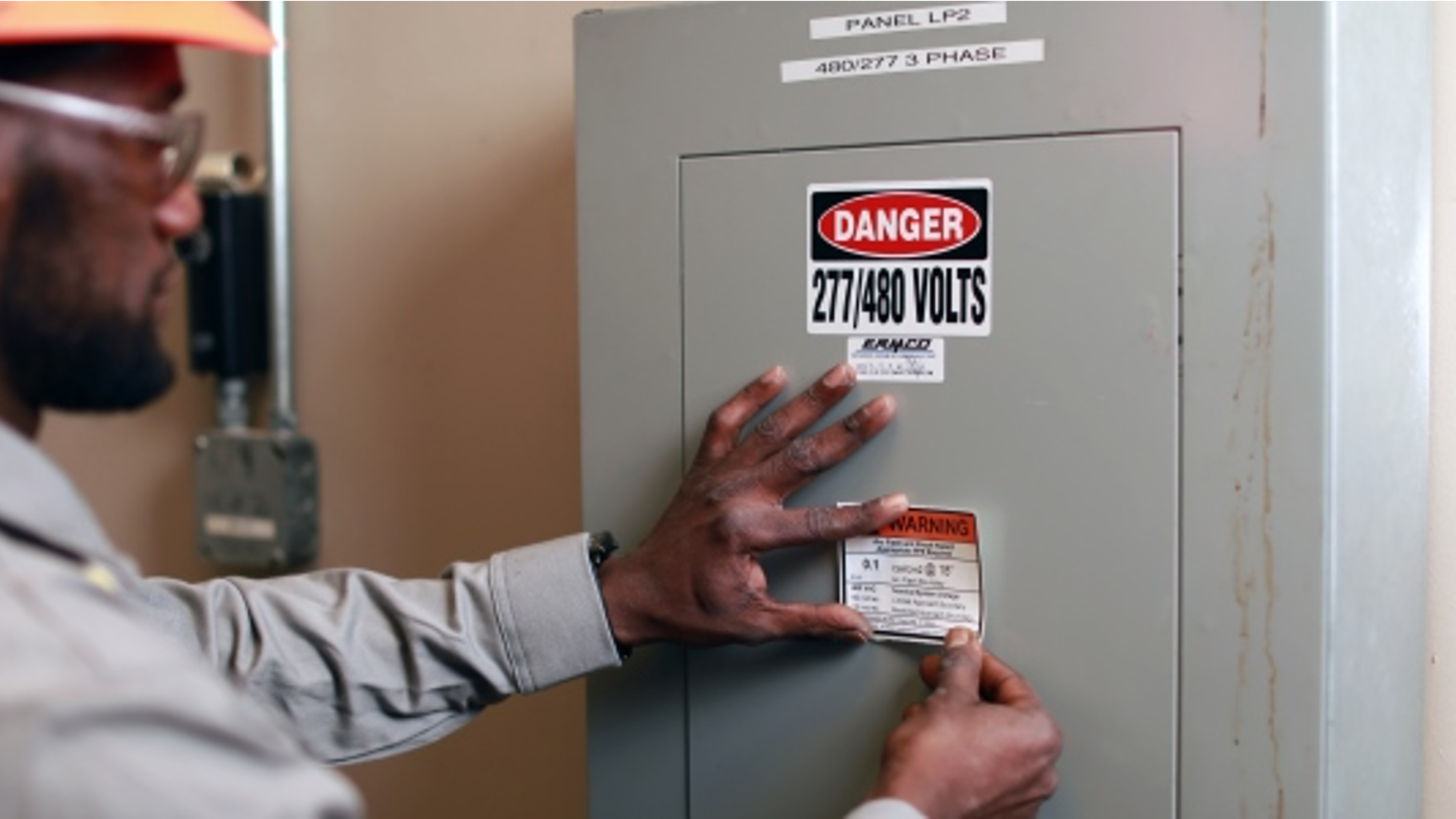

If you have ever looked at an arc flash label on an electrical panel and seen a number expressed in cal/cm² and wondered what it actually means — this post is for you. Incident energy is the single most important number in your entire electrical safety program. Understanding what it measures, how it is calculated, and how it drives PPE selection is fundamental to keeping your workers safe.
The Definition of Incident Energy
Incident energy is the amount of thermal energy impressed on a surface at a given distance from an arc flash event. It is expressed in calories per square centimetre (cal/cm²). One cal/cm² is roughly the thermal energy needed to cause the onset of a second-degree burn on unprotected skin. The higher the incident energy value, the more severe the potential injury — and the more protective the PPE must be.
IEEE 1584, Guide for Performing Arc Flash Hazard Calculations, is the primary methodology used to calculate incident energy. It takes into account system voltage, available fault current, protective device clearing time, working distance, and enclosure geometry to produce an accurate incident energy value for each location in your system.
How Incident Energy Drives PPE Selection
NFPA 70E Table 130.5(G) provides the PPE category system, but for facilities using the Incident Energy Analysis Method, the arc-rated PPE required is determined directly by the calculated value:
- Up to 1.2 cal/cm²: Minimum arc-rated clothing required
- 1.2–4 cal/cm²: Arc flash PPE Category 1 minimum
- 4–8 cal/cm²: Arc flash PPE Category 2 minimum
- 8–25 cal/cm²: Arc flash PPE Category 3 minimum
- 25–40 cal/cm²: Arc flash PPE Category 4 minimum
- Greater than 40 cal/cm²: Energised work should not be performed — the hazard must be engineered out
Why Incident Energy Values Vary Across Your System
Incident energy is not a fixed property of your facility — it varies at every point in your electrical distribution system. Equipment closer to large transformers or with slower protective device clearing times tends to have higher incident energy values. A 480V motor control center panel might have an incident energy of 8 cal/cm², while a 15kV switchgear compartment in the same building might exceed 40 cal/cm².
This is why generic PPE policies — ‘everyone wears Category 2 in this building’ — are both inadequate and non-compliant. The PPE must match the actual incident energy at the specific location where work is being performed.
The Role of Protective Device Coordination
One of the most powerful ways to reduce incident energy is to optimize protective device coordination — ensuring that breakers and fuses operate as quickly as possible to clear a fault. A difference of one cycle in clearing time can reduce incident energy dramatically. This is why arc flash studies often include protective device coordination recommendations alongside the hazard analysis.
Bowtie Engineering’s Incident Energy Studies include full IEEE 1584 calculations and PPE guidance. Our Electrical Safety Training ensures your team understands how to use that data every day.
Frequently Asked Questions
What is incident energy and how is it measured?
Incident energy is the amount of thermal energy impressed on a surface at a given distance from an arc flash event, expressed in calories per square centimetre (cal/cm²). One cal/cm² is roughly the thermal energy required to cause the onset of a second-degree burn on unprotected skin. The higher the value, the more severe the potential injury and the more protective the required PPE.
How does incident energy determine what PPE a worker must wear?
For facilities using the Incident Energy Analysis Method, arc-rated PPE is selected directly based on the calculated value at the specific equipment being worked on. Values up to 1.2 cal/cm² require minimum arc-rated clothing, while values between 8 and 25 cal/cm² require Category 3 PPE. Above 40 cal/cm², energised work should not be performed at all — the hazard must be engineered out of the system.
Why does incident energy vary across different equipment in the same facility?
Incident energy depends on system voltage, available fault current, protective device clearing time, working distance, and enclosure geometry — all of which differ at every point in an electrical distribution system. Equipment closer to large transformers or protected by slower devices tends to have higher values. This is why blanket facility-wide PPE policies are both inadequate and non-compliant with NFPA 70E.
How can incident energy levels be reduced?
The most effective way to reduce incident energy is to optimise protective device coordination — ensuring breakers and fuses operate as quickly as possible to clear a fault. A difference of even one cycle in clearing time can reduce incident energy dramatically. This is why arc flash studies often include protective device coordination recommendations alongside the hazard calculations.
How is incident energy calculated?
Incident energy is calculated using the IEEE 1584 methodology, which accounts for system voltage, available fault current, protective device clearing time, working distance, and enclosure geometry. These calculations must be performed for each specific location in the electrical distribution system, which is why a proper arc flash study is required rather than relying on generic estimates.
