| Quick Answer: Power factor correction improves how efficiently a facility uses electricity by adding equipment (usually capacitor banks) that offsets the reactive demand of inductive loads like motors. It can reduce electricity costs by roughly 10–30%, eliminate utility low-power-factor penalties, free up system capacity, and reduce losses — often with a payback period of well under two years. |
Power factor is one of those electrical concepts that hides in plain sight on the utility bill. Many facilities pay penalties for poor power factor for years without realizing it, and many more carry needless losses in their distribution system. Correcting it is one of the few energy projects that improves the bill and the system at the same time.
What Power Factor Actually Measures
Power factor is the ratio of the real power that does useful work to the total apparent power the facility draws. Inductive loads — motors, transformers, and certain lighting — pull additional reactive current that does no useful work but still loads the conductors, transformers, and the utility’s system. A facility with a power factor of 0.80 is drawing significantly more current than one at 0.95 to do the same job. The reactive portion is not “wasted power” exactly, but it is excess current the system has to carry.
Why Utilities Penalize Low Power Factor
Because reactive demand loads the utility’s infrastructure without producing billable real energy, many utilities impose penalties on commercial and industrial customers whose power factor falls below a threshold, commonly 0.90. These penalties can add a meaningful percentage to the bill — often in the range of 15–25% for facilities running well below the threshold. The frustrating part is that the penalty buys nothing; it is pure overhead that correction can eliminate.
How Correction Works

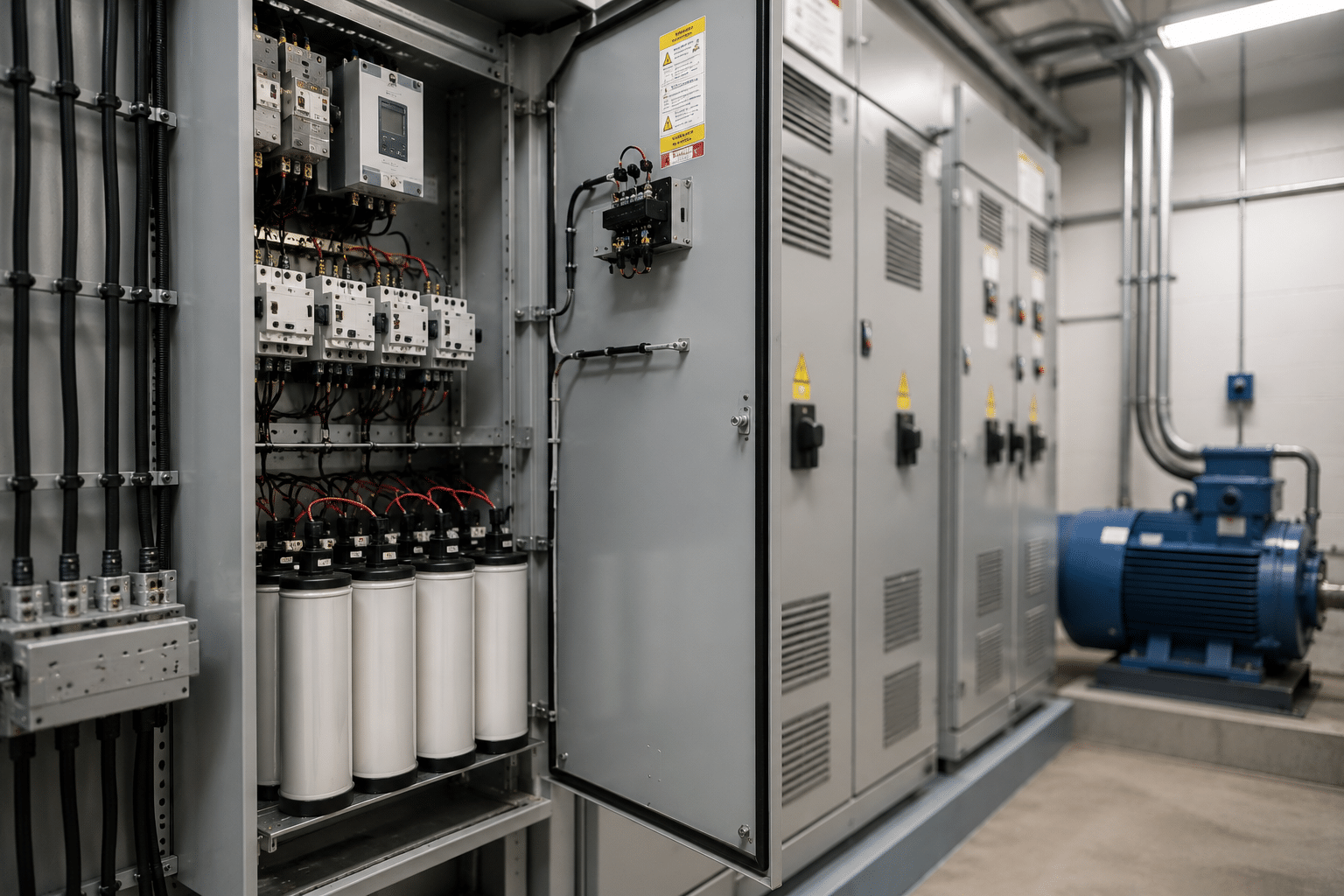

Correction typically means installing capacitors — at individual motors, at motor control centers, or as a central bank at the service — that supply the reactive current locally instead of drawing it across the whole system. With the reactive demand offset, total current drops, the measured power factor rises toward unity, and the penalty disappears. The right configuration depends on the facility’s load profile, which is why correction starts with measurement, not equipment. Bowtie’s energy solutions begin by analyzing the actual load before recommending anything.
How Much Can It Save?
Savings come from two sources: eliminating utility penalties and reducing losses in the facility’s own distribution system. Reported results commonly land in the 10–30% range on affected electricity costs, with many facilities seeing the largest immediate gain from removing penalty charges. Improving power factor from around 0.70 to 0.95 can cut distribution losses substantially. Payback periods are often short — frequently under eighteen months — and the equipment continues delivering value for many years afterward.
The Side Benefits Beyond the Bill
Correction does more than trim costs. Lower current means less heating in conductors and transformers, which extends equipment life and improves reliability. It can also free up capacity in the existing electrical system, sometimes deferring or avoiding a service or transformer upgrade when a facility wants to add load — for example, when adding EV charging or new production equipment. In that sense, power factor correction can be an enabler for growth, not just a cost-cutting measure, and it fits naturally alongside broader engineering services.
Doing It Right: Measure First
Over-correcting or installing fixed capacitors on a variable load can cause its own problems, including overvoltage and resonance issues. That is why correction should follow a study of the facility’s real, time-varying load rather than a rule of thumb. A proper assessment determines how much correction is needed, where to place it, and whether automatic switched banks are warranted for loads that change throughout the day.
How to Tell If Your Facility Has a Power Factor Problem
The first place to look is the utility bill. Many commercial and industrial bills list either a power factor value or a separate reactive demand or power-factor penalty line item; if you see one, you are paying for poor power factor right now. Even if no penalty appears, a facility heavy in motors, pumps, compressors, HVAC, or older lighting is a strong candidate, especially when that equipment frequently runs below full load. Typical large commercial buildings operate around 0.82 to 0.88 power factor, and many industrial sites sit even lower, leaving real room for improvement. A short metering study over a representative period reveals the actual power factor profile and how it varies with production.
Fixed vs Automatic Correction
Not all correction is the same. Fixed capacitors are sized for a steady, predictable load and are simple and economical — ideal at a constant-running motor. Automatic capacitor banks use a controller to switch capacitance in and out as the load changes, which suits facilities whose demand swings throughout the day. Choosing wrong matters: fixed correction on a load that drops off can over-correct and push the system into leading power factor, risking overvoltage. Matching the correction type to the real, time-varying load is the difference between a clean payback and a new problem, and it is why the load study comes first.
Once correction is installed, the work is not entirely finished. Capacitors degrade over time, fuses can blow, and automatic controllers can drift, so a quietly failed capacitor bank can let a facility slide back into penalty territory without anyone noticing for months. Folding a periodic check of the correction equipment into the regular electrical maintenance program protects the savings you paid for. It is also wise to re-evaluate correction whenever the facility’s load changes significantly — adding a production line, swapping to high-efficiency motors with different characteristics, or installing EV charging can all shift the reactive profile enough to warrant resizing. Treated as a living part of the electrical system rather than a one-time purchase, power factor correction keeps delivering returns for the full fifteen-to-twenty-year life of the equipment.
The bottom line for decision-makers is that power factor correction is one of the rare facility investments that improves the utility bill and the electrical system at the same time, usually with a fast and predictable payback. Because the savings are recurring and the side benefits — reduced losses, lower equipment heating, freed-up capacity — compound over time, it often ranks among the highest-return energy projects a facility can undertake. The only real prerequisite is doing the measurement first, so the correction is sized to the load the facility actually has rather than the one it is assumed to have.
Frequently Asked Questions
What causes low power factor?
Inductive loads like motors and transformers, especially when operated below full load.
How much can power factor correction save?
Commonly 10–30% on affected electricity costs, with a large share coming from eliminating utility penalties.
What is the typical payback period?
Often under eighteen months, depending on penalties and load profile.
Does correction help beyond the bill?
Yes — it reduces losses and heating, extends equipment life, and can free up system capacity.
Can you over-correct?
Yes. Correction should follow a load study to avoid overvoltage and resonance problems.
Key Takeaways
- Power factor measures how efficiently a facility uses the current it draws.
- Utilities often penalize power factor below 0.90, adding needless cost.
- Correction commonly saves 10–30% and frequently pays back in under eighteen months.
- Always size correction from a real load study to avoid over-correction problems.
