| Quick Answer: Power quality describes how clean and stable a facility’s voltage and current are. Harmonics are distortions of the normal 60 Hz waveform created by nonlinear loads such as variable frequency drives, electronic power supplies, and LED lighting. Excess harmonics overheat transformers, motors, and neutrals, cause nuisance breaker trips, and waste energy. IEEE 519 sets recommended voltage and current distortion limits at the point of common coupling. |
Electricity is supposed to arrive as a clean, smooth sine wave. In modern facilities full of electronics, it often does not — and the distortion has real consequences for equipment life, reliability, and energy cost. Power quality, and harmonics in particular, is one of the most under-diagnosed issues in commercial and industrial buildings, precisely because the symptoms are easy to blame on something else.
What Power Quality Means
Power quality is a broad term for how well the voltage and current delivered to equipment match the ideal: stable voltage, balanced phases, steady frequency, and an undistorted waveform. Poor power quality shows up as sags and swells, transients, voltage imbalance, flicker, and waveform distortion. When power quality is good, equipment runs cooler and lasts longer; when it is poor, the effects range from subtle efficiency losses to outright equipment damage and unexplained shutdowns.
What Harmonics Are
Harmonics are currents and voltages at multiples of the fundamental 60 Hz frequency — 180 Hz, 300 Hz, and so on. They are created by nonlinear loads, which draw current in pulses rather than smoothly. The biggest culprits in a typical facility are variable frequency drives, switch-mode power supplies in computers and servers, electronic LED and fluorescent ballasts, UPS systems, and battery chargers. As these loads have multiplied, harmonic distortion has become the rule rather than the exception, and the cumulative effect can be significant.
The Problems Harmonics Cause
Harmonics do real damage. They cause additional heating in transformers and motors, shortening their life and sometimes forcing de-rating. They overload neutral conductors — triplen harmonics add up in the neutral of three-phase systems, so a neutral can carry more current than the phase conductors, a surprise that has overheated many undersized neutrals. They cause nuisance tripping of breakers and misoperation of sensitive electronics, and they waste energy through extra losses. Many facilities chase these symptoms — a transformer that runs hot, a breaker that trips for no obvious reason — without realizing harmonics are the root cause.
How IEEE 519 Frames the Limits
IEEE 519, the Standard for Harmonic Control in Electric Power Systems, is the recognized reference for how much distortion is acceptable. It sets recommended limits on both voltage distortion and current distortion, applied at the point of common coupling — the interface between the utility and the facility. The standard frames harmonics as a shared responsibility: the utility manages voltage distortion on the system, while each customer limits the current distortion it injects. Measuring against IEEE 519 turns a vague “the power seems dirty” complaint into a quantified assessment with clear pass/fail context.
How a Power Quality Assessment Works

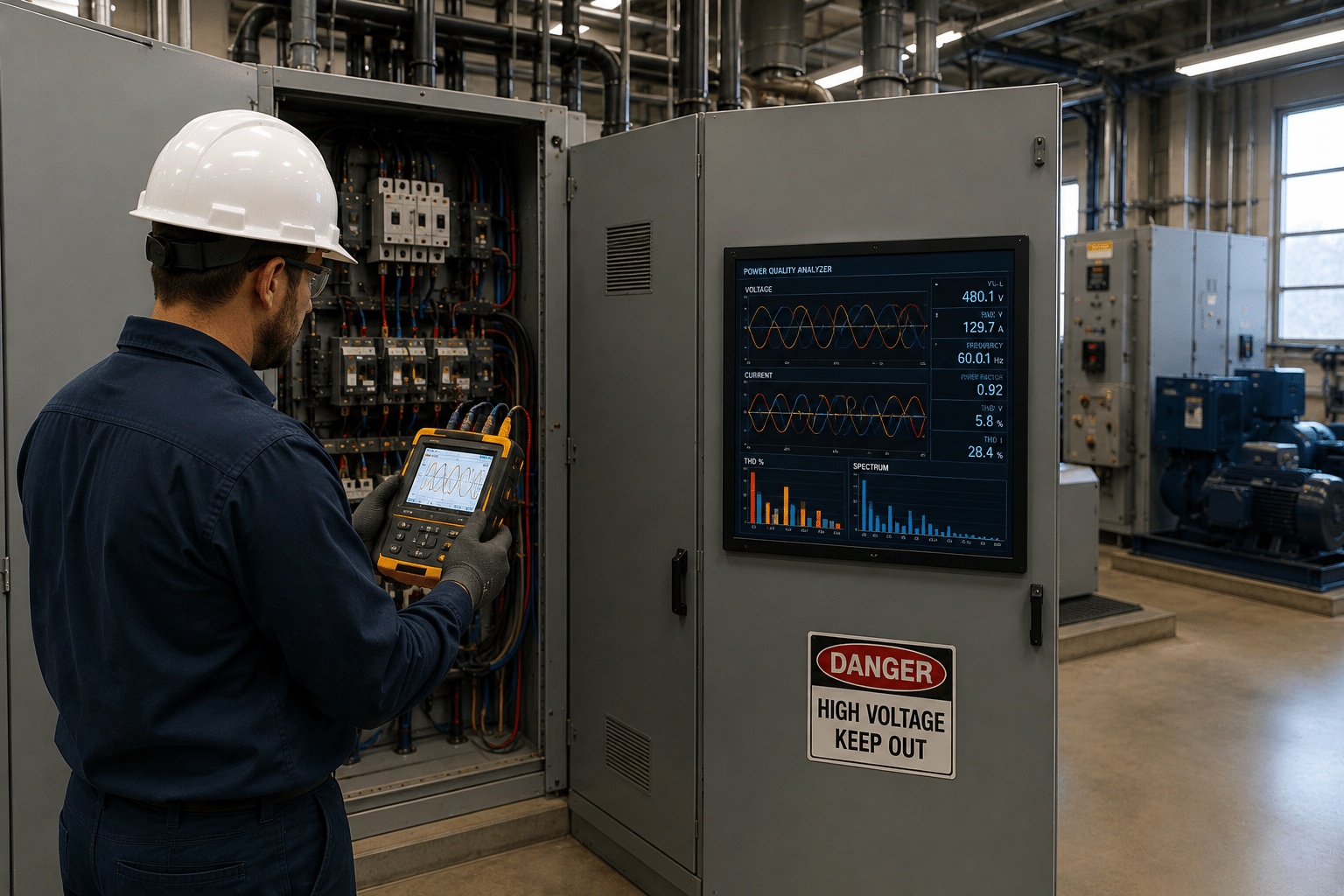

Diagnosing harmonics starts with measurement. A power quality analyzer is installed at strategic points — typically the service entrance and major distribution panels — and logs voltage and current waveforms, total harmonic distortion, individual harmonic orders, and how they vary with production over a representative period. That data reveals which loads are the sources, where distortion exceeds reasonable limits, and which equipment is at risk. Because distortion changes with what is running, a snapshot is not enough; the assessment needs to capture the facility across its real operating cycles. This kind of investigation fits naturally within Bowtie’s energy solutions.
What You Can Do About Harmonics
Once the sources are identified, several remedies exist. Harmonic filters — passive or active — can be installed to absorb or cancel specific harmonic currents. Drives can be specified with built-in mitigation, such as line reactors or 12- or 18-pulse front ends. Transformers can be specified as K-rated to tolerate harmonic heating. Neutrals can be upsized where triplen harmonics dominate. Loads can sometimes be redistributed so that harmonic-heavy equipment does not overwhelm a single transformer. The right mix depends entirely on the measured profile, which is why mitigation always follows measurement, not a guess.
Why Harmonics Are Also a Reliability and Safety Issue
Harmonics are not only an energy and equipment-life problem; they touch reliability and safety too. Overheated neutrals and transformers are fire and failure risks, and harmonic-driven nuisance tripping can take down critical processes. Harmonic heating accelerates insulation aging, which connects back to the slow degradation that insulation testing is meant to catch. Addressing power quality therefore protects the same equipment that a maintenance program protects — another reason to treat it as part of the facility’s overall electrical health rather than a niche concern handled in isolation by the broader electrical maintenance program.
There is an energy-cost angle as well. Harmonic currents increase losses in transformers and conductors, and the extra current associated with distortion can raise demand without producing useful work — much like a poor power factor. Facilities pursuing efficiency often find that correcting harmonics and correcting power factor go hand in hand, since the same nonlinear loads frequently drive both. That is why a power quality assessment is rarely just about avoiding equipment damage; it usually surfaces efficiency opportunities that improve the utility bill at the same time, which is the kind of dual benefit that makes the measurement easy to justify.
For facilities adding large nonlinear loads — a new bank of variable frequency drives, an expanded server room, or fleets of EV chargers — the smart move is to evaluate power quality as part of the project rather than after symptoms appear. Designing mitigation in from the start is far cheaper than retrofitting filters once a transformer is already running hot, and it keeps the new load from quietly degrading the power feeding everything else in the building.
Frequently Asked Questions
What causes harmonics?
Nonlinear loads that draw current in pulses — variable frequency drives, electronic power supplies, UPS systems, LED/fluorescent ballasts, and chargers.
What problems do harmonics cause?
Transformer and motor overheating, overloaded neutrals, nuisance breaker trips, sensitive-electronics misoperation, and wasted energy.
What does IEEE 519 do?
It sets recommended voltage and current distortion limits at the point of common coupling between the utility and the facility.
How are harmonics measured?
With a power quality analyzer logging waveforms and distortion at the service and key panels over a representative period.
How are harmonics reduced?
Harmonic filters, drive mitigation (reactors, multi-pulse), K-rated transformers, upsized neutrals, and load redistribution — chosen from measured data.
Key Takeaways
- Power quality is how clean and stable a facility’s voltage and current are.
- Harmonics come from nonlinear loads and overheat transformers, motors, and neutrals.
- IEEE 519 sets recommended distortion limits at the point of common coupling.
- Fix harmonics from measured data — filters, drive mitigation, K-rated transformers, or upsized neutrals.
