Arc flash PPE can look good on paper and still fail a worker in front of a live panel. When PPE is picked from a generic category chart instead of real numbers, you are trusting a guess, not data. That gap is where serious burn injuries can occur, even when work appears to follow “the book.”
In this article, we explain why an arc flash PPE assessment that skips actual incident energy calculations is risky for both safety and compliance. You will see what incident energy is, why tables alone are not enough, how engineering studies work, and how to turn those numbers into a safer, defensible PPE program.
When “Good Enough” Arc Flash PPE Fails in the Field

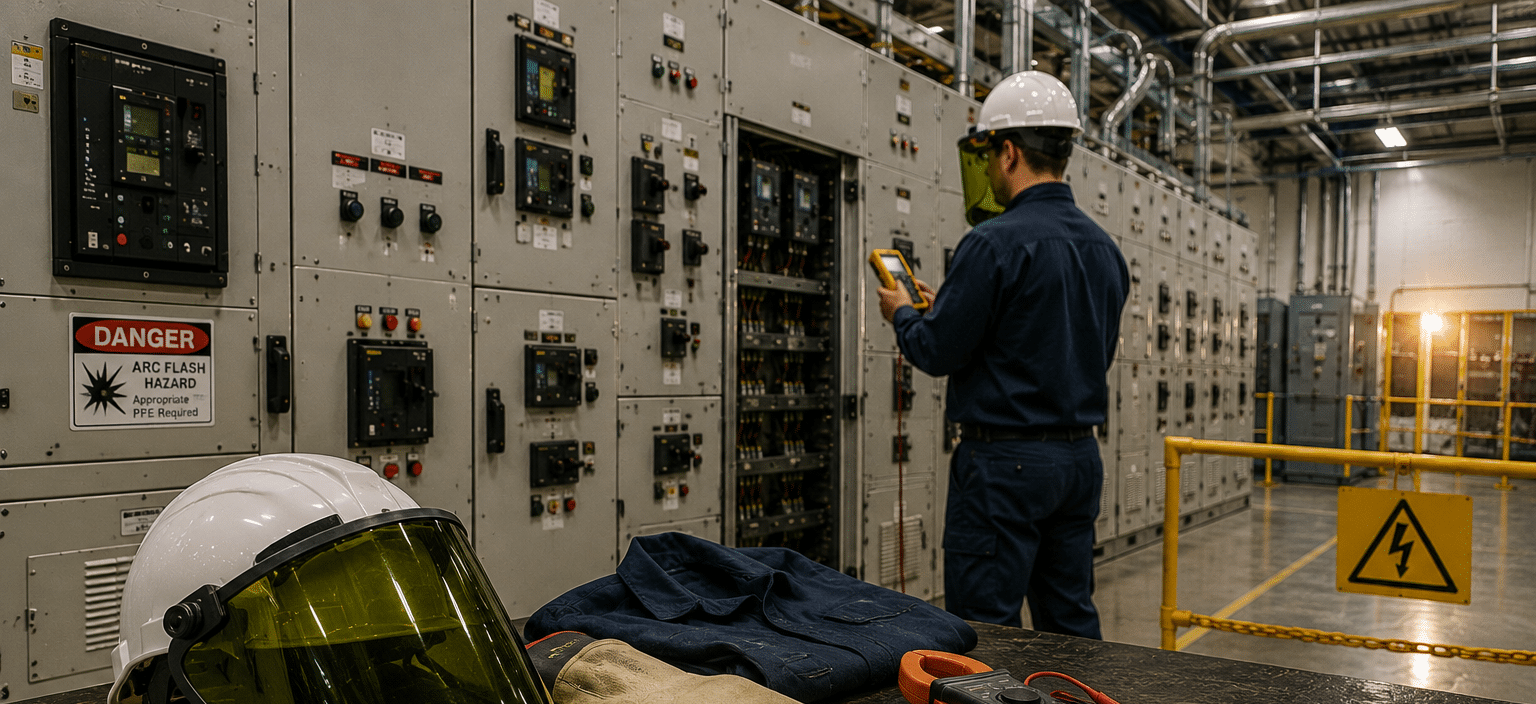

A worker stands in front of a 480 V panel on a hot day, wearing what the label says: Category 2 gear. The label came from an old project, based on a quick table and not on a current study. When an internal fault happens, the blast is stronger than expected. The PPE provides more protection than street clothes, but not enough for the actual incident energy at that location.
This type of near miss happens when facilities assume that any label and any PPE category provide adequate protection. In many plants and commercial buildings, labels were applied years ago and then forgotten. PPE was purchased to match those labels, and nobody tied it back to current, site-specific system data.
The core problem is simple: without real incident energy data, you cannot reliably match PPE ratings to the hazard. That gap puts workers at risk and leaves the employer exposed under OSHA and NFPA 70E. Incident energy is the amount of thermal energy that can reach a worker’s body at a set distance during an arc flash. When you calculate it correctly, it becomes the backbone of more precise and defensible PPE decisions.
What Incident Energy Really Means for Your PPE Choices
Incident energy is the heat energy from an arc fault that reaches a person at a certain working distance. It is measured in calories per square centimeter (cal/cm²). In practical terms, it describes how intense that heat exposure is on a worker’s skin or PPE.
Arc-rated PPE is designed and tested to a specific incident energy level. That level is the arc rating, in cal/cm². If the incident energy at a panel is 6 cal/cm², then your clothing, face shield, and other gear must have an arc rating at or above that number.
Here is why Category-Only approaches are not enough:
- Categories are broad groupings, not exact numbers
- They do not account for your specific system settings
- They can hide both underprotection and overprotection
NFPA 70E requires a proper hazard identification and risk assessment process. OSHA expects PPE to be based on a documented, engineering-driven analysis, not guesswork. Incident energy depends on factors such as:
- The type and size of the equipment
- The available fault current
- The clearing time of breakers or fuses
- The working distance of the task
Because those factors change from one location to another, a one-size-fits-all PPE rule for “all 480 V panels” is neither safe nor defensible.
Why Table-Only Arc Flash PPE Assessment Falls Short
NFPA 70E provides tables that can help when you have limited information. They are meant to be conservative tools for simple, well-understood systems. They are not intended to replace a full engineering arc flash study in most industrial or mission-critical facilities.
Common problems with table-only use include:
- Applying task tables without checking short-circuit current
- Ignoring maximum fault current and clearing time limits
- Using the same category for every panel in the building
- Treating the table as a blanket rule instead of a guideline
This approach can create both underprotection and overprotection. Sometimes the PPE is too light for the real incident energy, which increases burn risk. Other times the PPE is much heavier than needed. Heavy, hot gear can slow workers down, cause fogged face shields, and increase the chance of human error.
In late summer, when heat and humidity are high, over-specifying PPE becomes especially difficult for workers. They already struggle with hot suits and hoods. When you use accurate incident energy data, you can right-size PPE so it is strong enough for the hazard, but not more than the task requires.
How Real Incident Energy Data Is Calculated and Verified
An engineering-based arc flash study usually follows the methods in IEEE 1584. The process is structured, so every step supports the next.
The core steps include:
- Detailed field data collection
- Short-circuit analysis
- Protective device coordination study
- Incident energy and arc-flash boundary calculations
Accurate field data is essential. That means collecting information such as:
- Equipment nameplate ratings and types
- Utility fault contribution at each service point
- Conductor sizes, lengths, and routing
- Actual protective device settings, not just factory defaults
Protective devices also have to operate as intended. NETA ATS and NETA MTS give guidance on testing and maintaining breakers, relays, and fuses. If those devices are slow, mis-set, or not maintained, clearing time increases. When clearing time increases, incident energy often rises with it.
Once the electrical model is built, it is reviewed and checked for reasonableness. Different operating scenarios may be tested, such as normal operation and backup source operation. Then the calculated incident energy values are turned into clear labels and PPE recommendations that workers can read and use at the equipment.
Turning Arc Flash Data Into a Defensible PPE Program
After you have real incident energy values, you can build a PPE program that actually matches the hazard. You can:
- Choose PPE ratings that match or exceed site-specific values
- Set arc flash boundaries and approach limits
- Update written energized work procedures under NFPA 70E
Labels, training, and work permits should all point to the same information. At each piece of gear, workers should be able to see the calculated incident energy and the required PPE level. Training should explain how to read the label and how it links to the work permit and your electrical safety policy.
Change management is also part of a defensible program. Your study and PPE assessment should be reviewed when:
- Major equipment is added or removed
- Protection settings are changed
- The utility source changes in a meaningful way
- Your defined review cycle comes due
Keeping engineering data, training, maintenance, and PPE aligned is a continuing process. That is the type of long-term electrical safety support Bowtie Engineering provides for industrial, commercial, and mission-critical facilities nationwide.
Key Takeaways
- Incident Energy is the foundation of a reliable arc flash PPE assessment.
- Table-Only Methods have strict limits and are often misapplied in real facilities.
- Engineering Studies Using IEEE 1584 lead directly to better PPE choices.
- Ongoing Maintenance and Updates under NETA ATS/MTS are needed to keep values accurate.
- Partnering with a Specialized Electrical Safety Firm supports OSHA and NFPA 70E compliance and helps protect workers.
To strengthen your arc flash PPE program with data-driven incident energy calculations and nationally proven expertise, call 866-730-6620 or request an assessment/free quote. Bowtie Engineering’s licensed engineers and safety specialists support facilities across the country with NFPA 70E- and OSHA-aligned arc flash studies, labeling, and PPE programs.
Frequently Asked Questions
What Is Incident Energy and Why Does It Matter for PPE?
Incident energy is the heat energy from an arc flash that reaches a worker at a set distance, measured in cal/cm². It matters because it directly sets the minimum arc rating needed for clothing and protective gear.
Are NFPA 70E Tables Enough for an Arc Flash PPE Assessment?
NFPA 70E tables can be a starting point for simple, limited systems, but they have strict rules and limits. For most larger or complex facilities, a full engineering analysis is the safer and more defensible approach.
How Often Should My Arc Flash Study and PPE Requirements Be Updated?
They should be updated after significant system changes and reviewed on a regular cycle. Many facilities choose a review every few years, adjusted to their level of change and risk.
What Standards Govern Arc Flash Studies and PPE Selection?
Key standards include NFPA 70E, OSHA 29 CFR 1910, IEEE 1584, and NETA ATS and NETA MTS for testing and maintenance of protective devices.
How Do I Get Started with a Data-Driven Arc Flash PPE Assessment?
Start by working with a qualified electrical engineering and safety firm that can perform an arc flash study, interpret the results, and help you build a PPE program around real incident energy data.
